High performance copper brazing pastes

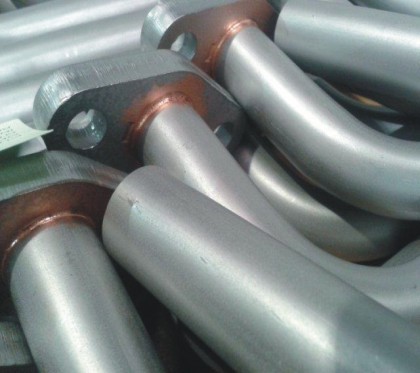

LINBRAZE copper brazing pastes are used for joining low carbon steel and stainless steel components. LINBRAZE copper brazing pastes offer the fastest and most economical process to furnace brazing for automotive and industrial components. All pastes can be dispensed by automated devices which deliver a precise quantity of filler material or by manual dispensing devices. Copper pastes save time and money avoiding the need of solid brazing material and reducing the inventory costs associated with maintaining a stock of preform sizes and shapes. The above list is a standard range of our regular production, for any special request please do not hesitate to contact us directly or through our consultants.

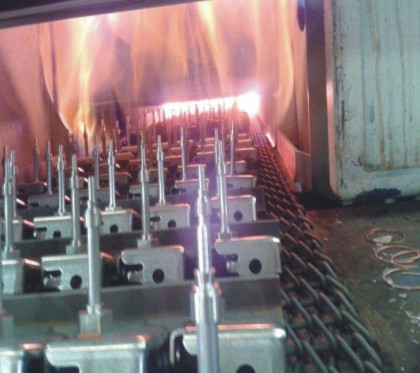

Heat sources: inert-gas continuous furnace H2/N2, cracked ammonia, exogas, vacuum furnace

Availables in a large range of viscosity and compositions. All our pastes are available in a variety of packaging options including steel or plastic drums 15-20-50 Kg.

Other product data sheets only upon request

ME99-LA10

ISO 3677: B-Cu99-1085

ISO 17672: Cu 099

ISO 1044: CU 103

Technical Data Sheet
ME110-LA10

ISO 3677: B-Cu100-1085

ISO 17672: Cu 110

ISO 1044: CU 101

Technical Data Sheet
ME141-LA10

ISO 3677: B-Cu100(P)-1085

ISO 17672: Cu 141

ISO 1044: CU 104

Technical Data Sheet
ME110-LB10

ISO 3677: B-Cu100-1085

ISO 17672: Cu 110

ISO 1044: CU 101

Technical Data Sheet
ME141-LB10

ISO 3677: B-Cu100(P)-1085

ISO 17672: Cu 141

ISO 1044: CU 104

Technical Data Sheet
ME99XGP-FA10

ISO 3677: B-Cu99-1085

ISO 17672: Cu 099

ISO 1044: CU 103

Technical Data Sheet
ME141XGP-FA10

ISO 3677: B-Cu100(P)-1085

ISO 17672: Cu 141

ISO 1044: CU 104

Technical Data Sheet
ME141X12-PT7

ISO 3677: B-Cu100(P)-1085

ISO 17672: Cu 141

ISO 1044: CU 104

Technical Data Sheet
ME141-DA10

ISO 3677: B-Cu100(P)-1085

ISO 17672: Cu 141

ISO 1044: CU 104

Technical Data Sheet
ME141-HM8

ISO 3677: B-Cu100(P)-1085

ISO 17672: Cu 141

ISO 1044: CU 104

Technical Data Sheet
ME186-FA10P

ISO 3677: B-Cu97Ni(B)-1085/1100

ISO 17672: Cu 186

ISO 1044: CU 105

Technical Data Sheet
ME186-DA10

ISO 3677: B-Cu97Ni(B)-1085/1100

ISO 17672: Cu 186

ISO 1044: CU 105

Technical Data Sheet
